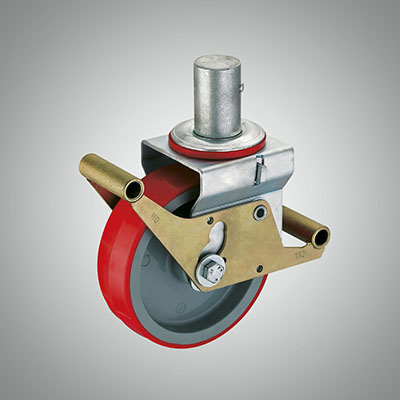

European Scaffold Castor Series - PU Solid Stem Caster - Wrap Around Brake
Description
Zinc-plated pressed steel housing with precision steel ball raceway in swivel head
High performance PU wheel with straight roller bearing
250~450kg loading capacity
Product Data
Additional Option
Applications
| CATEGORY | DESCRIPTION | 5" | 6" | 8" |
|---|---|---|---|---|
| BASIC DATA | Item No. | |||
| Series | Scaffold Castor | Scaffold Castor | Scaffold Castor | |
| Size | 125mm | 150mm | 200mm | |
| Load Height | 158mm | 180mm | 237mm | |
| Load Capacity | 250kg | 350kg | 450kg | |
| Temperature | ||||
| Unit Weight | ||||
| MOUNTING DATA | Fitting Type | Solid Stem | Solid Stem | Solid Stem |
| Fitting Size | 34.5/38.35*55.5/58 | 38*56 | 38*56 | |
| Base Thickness | ||||
| Raceway Nozzle | ||||
| Seamless Cover | ||||
| FORK DATA | Brake Type | Total Lock | Total Lock | Total Lock |
| Coating Type | ||||
| Fork Thickness | ||||
| Fork Width | ||||
| Axle Offset | 30mm | 30mm | 40mm | |
| Logo | Blank | Blank | Blank | |
| Place of Origin | Blank | Blank | Blank | |
| WHEEL DATA | Wheel Diameter | 125mm | 150mm | 200mm |
| Core Material | PA | PA | PA | |
| Tread Material | PU | PU | PU | |
| Tread Type | ||||
| Tread Width | 40mm | 50mm | 50mm | |
| Tread Hardness | ||||
| Hub Length | ||||
| Axle Bore Dia. | ||||
| Bearing Type | Straight Roller Bearing | Straight Roller Bearing | Straight Roller Bearing | |
| Wheel Nozzle | ||||
| Cover | ||||
| Logo | Blank | Blank | Blank |
