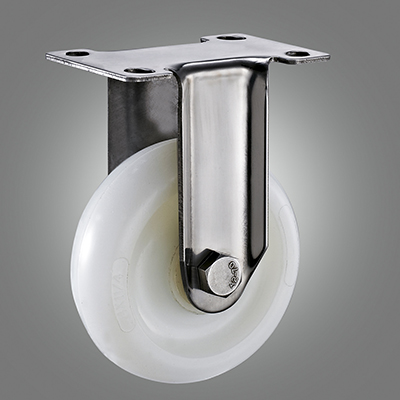

Stainless Steel Caster Series - Medium Duty PA Top Plate Caster - Rigid
Description
#304 stainless steel housing
Excellent PA wheel with precision oilless or stainless plain bearing
95~135kg loading capacity
Product Data
Additional Option
Applications
| CATEGORY | DESCRIPTION | 3" | 4" | 5" |
|---|---|---|---|---|
| BASIC DATA | Item No. | |||
| Series | Stainless Steel Caster | Stainless Steel Caster | Stainless Steel Caster | |
| Size | 75mm | 100mm | 125mm | |
| Mounting Height | 113.5mm | 135mm | 160.5mm | |
| Load Capacity | ||||
| Temperature Resistance | ||||
| Unit Weight | ||||
| MOUNTING DATA | Fitting Type | Top Plate | Top Plate | Top Plate |
| Fitting Size | 95*70 - 73.5*49 - 8.9*R4.5 | 95*70 - 73.5*49 - 8.9*R4.5 | 95*70 - 73.5*49 - 8.9*R4.5 | |
| Base Thickness | 2.3mm | 2.3mm | 2.3mm | |
| Raceway Nozzle | ||||
| Seamless Cover | ||||
| FORK DATA | Brake Type | Rigid | Rigid | Rigid |
| Coating Type | ||||
| Fork Thickness | 2.3mm | 2.3mm | 2.3mm | |
| Fork Width | ||||
| Axle Offset | ||||
| Logo | Blank | Blank | Blank | |
| Place of Origin | Blank | Blank | Blank | |
| WHEEL DATA | Wheel Diameter | 75mm | 100mm | 125mm |
| Core Material | PA | PA | PA | |
| Tread Material | PA | PA | PA | |
| Tread Type | ||||
| Tread Width | 32mm | 32mm | 32mm | |
| Tread Hardness | ||||
| Hub Length | ||||
| Axle Bore Dia. | ||||
| Bearing Type | Oilless or Stainless Plain Bearing | Oilless or Stainless Plain Bearing | Oilless or Stainless Plain Bearing | |
| Wheel Nozzle | ||||
| Cover | ||||
| Logo | Blank | Blank | Blank |
