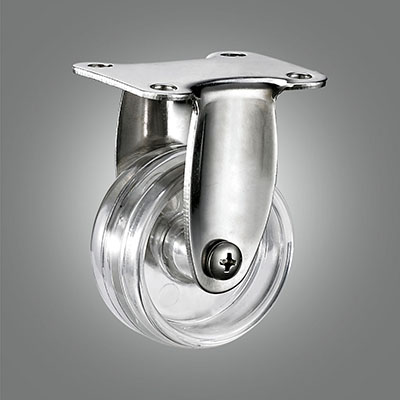

Stainless Steel Caster Series - Light Duty Transparent PC Top Plate Caster - Rigid
Description
#304 stainless steel housing
Excellent transparent PC wheel with precision stainless plain bearing
30~50kg loading capacity
Product Data
Additional Option
Applications
| CATEGORY | DESCRIPTION | 1-1/2" | 2" |
|---|---|---|---|
| BASIC DATA | Item No. | ||
| Series | Stainless Steel Caster | Stainless Steel Caster | |
| Size | 40mm | 51mm | |
| Mounting Height | 60mm | 72mm | |
| Load Capacity | 30kg | 50kg | |
| Temperature Resistance | |||
| Unit Weight | |||
| MOUNTING DATA | Fitting Type | Top Plate | Top Plate |
| Fitting Size | 54*43 - 40*30 | 54*43 - 40*30 | |
| Base Thickness | 2.0mm | 2.0mm | |
| Raceway Nozzle | |||
| Seamless Cover | |||
| FORK DATA | Brake Type | Rigid | Rigid |
| Coating Type | |||
| Fork Thickness | 2.0mm | 2.0mm | |
| Fork Width | |||
| Axle Offset | |||
| Logo | Blank | Blank | |
| Place of Origin | Blank | Blank | |
| WHEEL DATA | Wheel Diameter | 40mm | 51mm |
| Core Material | Transparent PC | Transparent PC | |
| Tread Material | Transparent PC | Transparent PC | |
| Tread Type | |||
| Tread Width | 22mm | 22mm | |
| Tread Hardness | |||
| Hub Length | |||
| Axle Bore Dia. | |||
| Bearing Type | Stainless Plain Bearing | Stainless Plain Bearing | |
| Wheel Nozzle | |||
| Cover | |||
| Logo | Blank | Blank |
