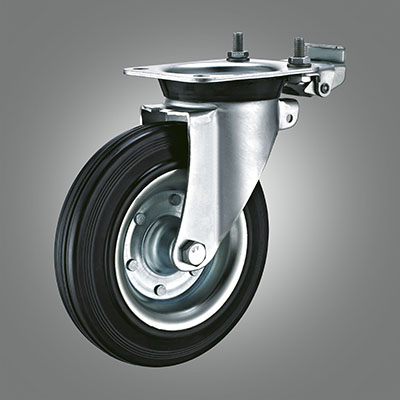

Trash Bin Caster Series - EN840 Rubber (Steel Core) - Directional Lock
Description
Have EN840 certification
Zinc-plated pressed steel housing with double steel ball raceway in swivel head
High performance rubber wheel with precision straight roller bearing
160~240kg loading capacity
Product Data
Additional Option
Applications
| CATEGORY | DESCRIPTION | 6" | 8" |
|---|---|---|---|
| BASIC DATA | Item No. | ||
| Series | Trash Bin Caster | Trash Bin Caster | |
| Size | 160mm | 200mm | |
| Load Height | 195mm | 245mm | |
| Load Capacity | 160kg | 240kg | |
| Temperature | |||
| Unit Weight | |||
| MOUNTING DATA | Fitting Type | Top Plate | Top Plate |
| Fitting Size | 135*110 - 105*78 - 11.5*13.5 | 135*110 - 105*78 - 11.5*13.5 | |
| Base Thickness | 3.5mm | 3.5mm | |
| Raceway Nozzle | |||
| Seamless Cover | |||
| FORK DATA | Brake Type | Directional Lock | Directional Lock |
| Coating Type | |||
| Fork Thickness | 3.0mm | 3.0mm | |
| Fork Width | |||
| Axle Offset | |||
| Logo | Blank | Blank | |
| Place of Origin | Blank | Blank | |
| WHEEL DATA | Wheel Diameter | 160mm | 200mm |
| Core Material | Steel | Steel | |
| Tread Material | Rubber | Rubber | |
| Tread Type | |||
| Tread Width | 50mm | 50mm | |
| Tread Hardness | |||
| Hub Length | |||
| Axle Bore Dia. | |||
| Bearing Type | Straight Roller Bearing | Straight Roller Bearing | |
| Wheel Nozzle | |||
| Cover | |||
| Logo | Blank | Blank |
