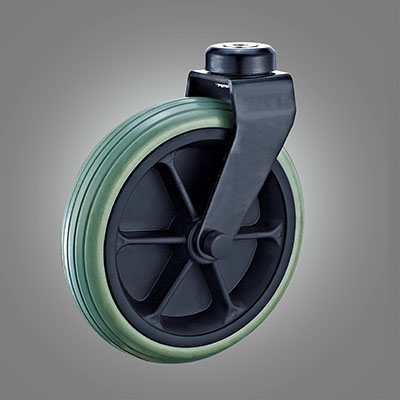

Medical Caster Series - Stretcher Foam PU Hollow Rivet Caster - Swivel
Description
Black-plated pressed steel housing with double steel ball raceway in swivel head
High performance Foam PU wheel with precision ball bearing
150kg loading capacity
Product Data
Additional Option
Applications
| CATEGORY | DESCRIPTION | 8" |
|---|---|---|
| BASIC DATA | Item No. | |
| Series | Medical Caster | |
| Size | 200mm | |
| Load Height | 234mm | |
| Load Capacity | 150kg | |
| Temperature | ||
| Unit Weight | ||
| MOUNTING DATA | Fitting Type | Hollow Rivet |
| Fitting Size | 桅12.5 | |
| Base Thickness | ||
| Raceway Nozzle | ||
| Seamless Cover | ||
| FORK DATA | Brake Type | Swivel |
| Coating Type | Electrophoresis | |
| Fork Thickness | 3.0mm | |
| Fork Width | ||
| Axle Offset | ||
| Logo | ||
| Place of Origin | ||
| WHEEL DATA | Wheel Diameter | 200mm |
| Core Material | PP | |
| Tread Material | Foam PU | |
| Tread Type | ||
| Tread Width | 50mm | |
| Tread Hardness | ||
| Hub Length | ||
| Axle Bore Dia. | ||
| Bearing Type | Ball Bearing | |
| Wheel Nozzle | ||
| Cover | ||
| Logo |
